WL-CMG
Loader Mat Grapple
WL-CMG
Loader Mat Grapple
{{WL-CMG}} IN-STOCK | Inventory List

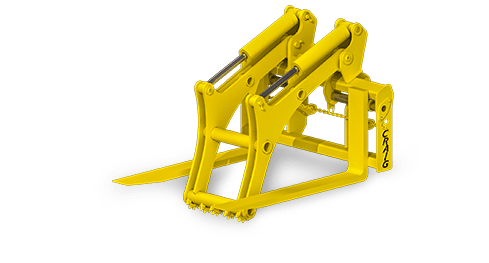

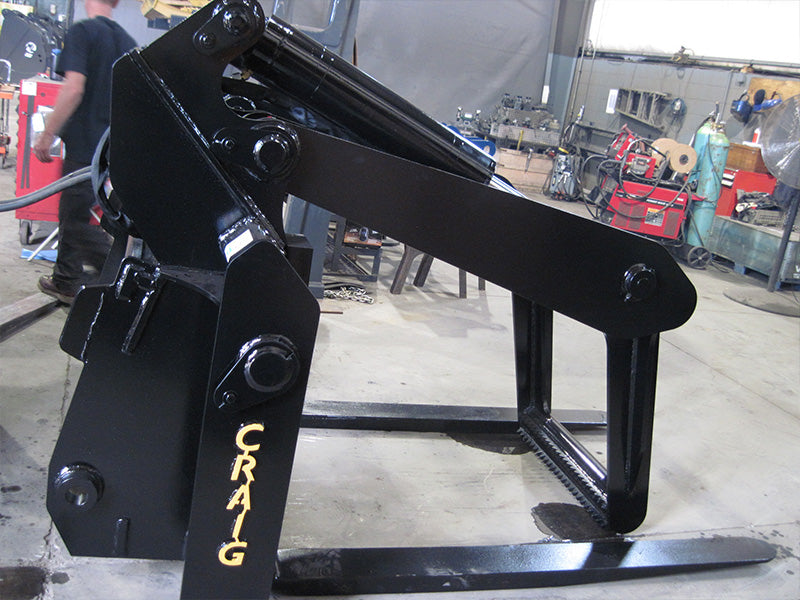

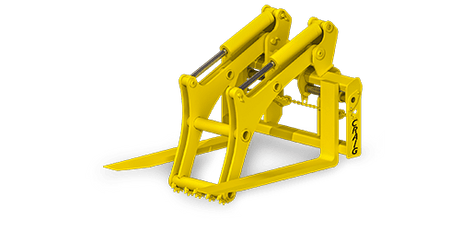

Designed for work in the oil fields, the Craig Mat Grapple for wheel loaders is the perfect tool for moving drilling mats around the job site.

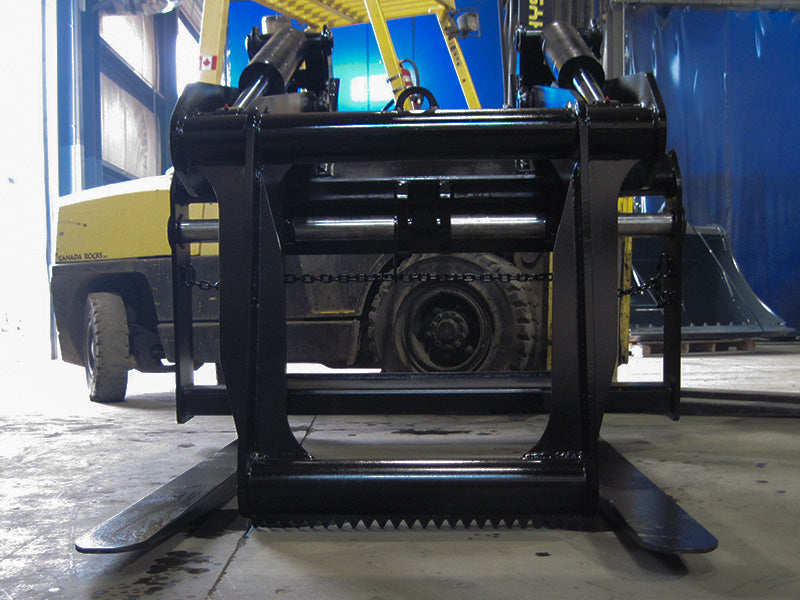

- Simple chain tine adjustment

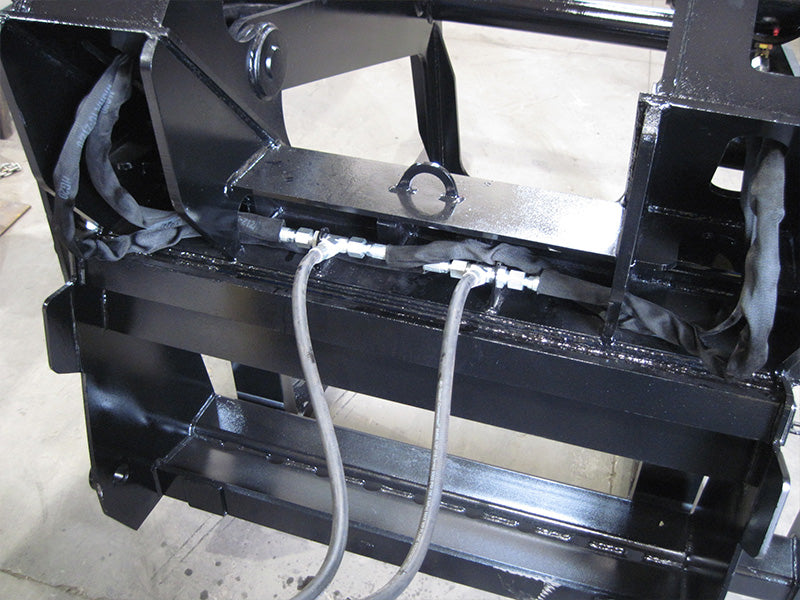

- Hoses concealed in frame
- Central hose bank
- Greaseable pins and lugs
- 5" bore cylinders with 2.5" shaft
- Tooth textured clamp provides a safe, secure grip
Available Fork Tines and Capacities
2.75 – 3.00 yd
- 2-1/2″ x 6″ x 72″ (14,200 lbs)
3.00 – 3.50 yd
- 2-1/2″ x 6″ x 72″ (14,200 lbs)
4.00 – 4.75 yd
- 3″ x 6″ x 72″ (19,000 lbs)
