EXM-TGCT Tilt TrueGrip 80 for CAT 320C | Clearance Offer

Special Clearance - Buy Now with Free Shipping* to USA & CANADA

All Sales Final - No Warranty. Sold As Is.

(*Freight is included for major delivery zones. Additional charges may apply for remote locations.)

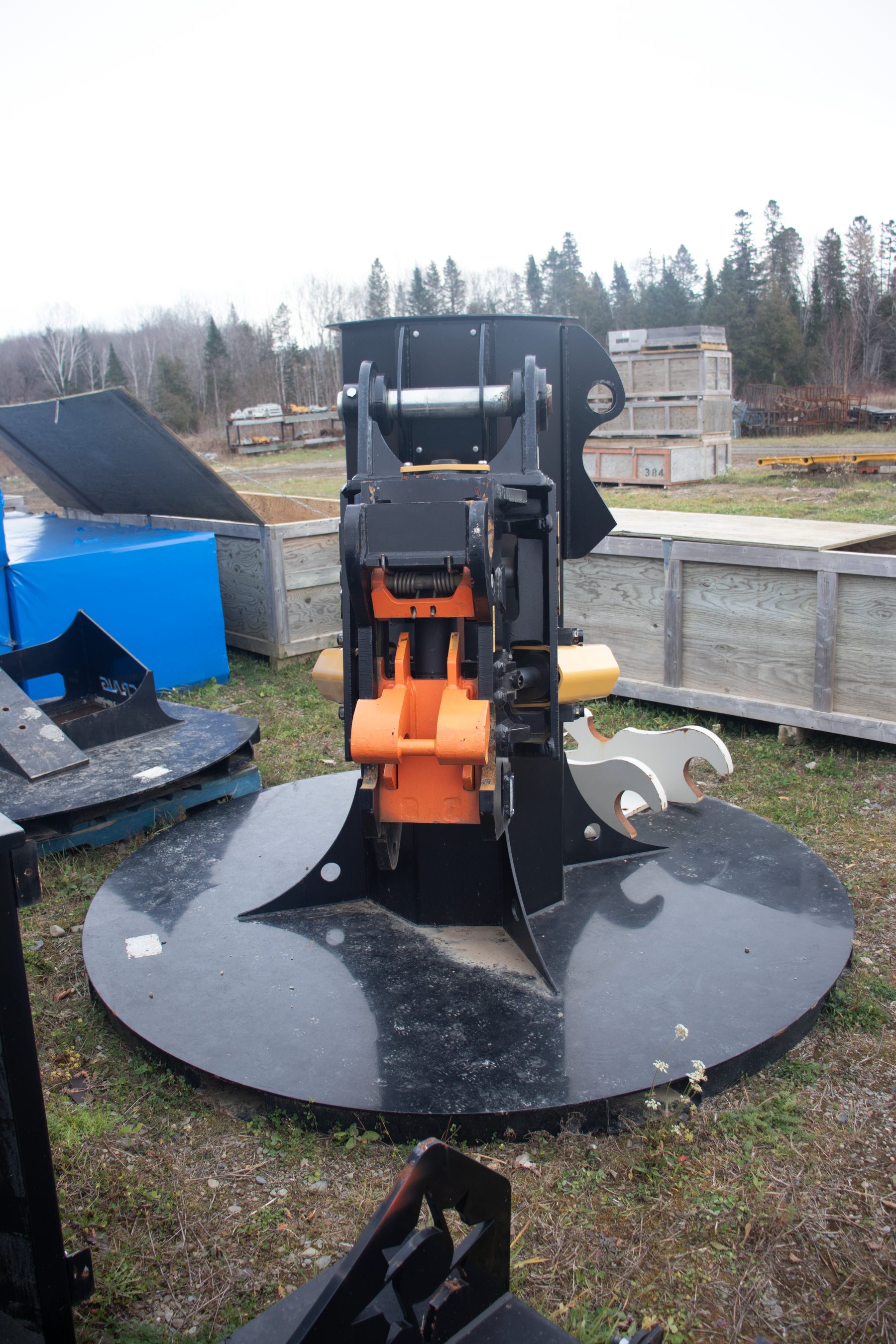

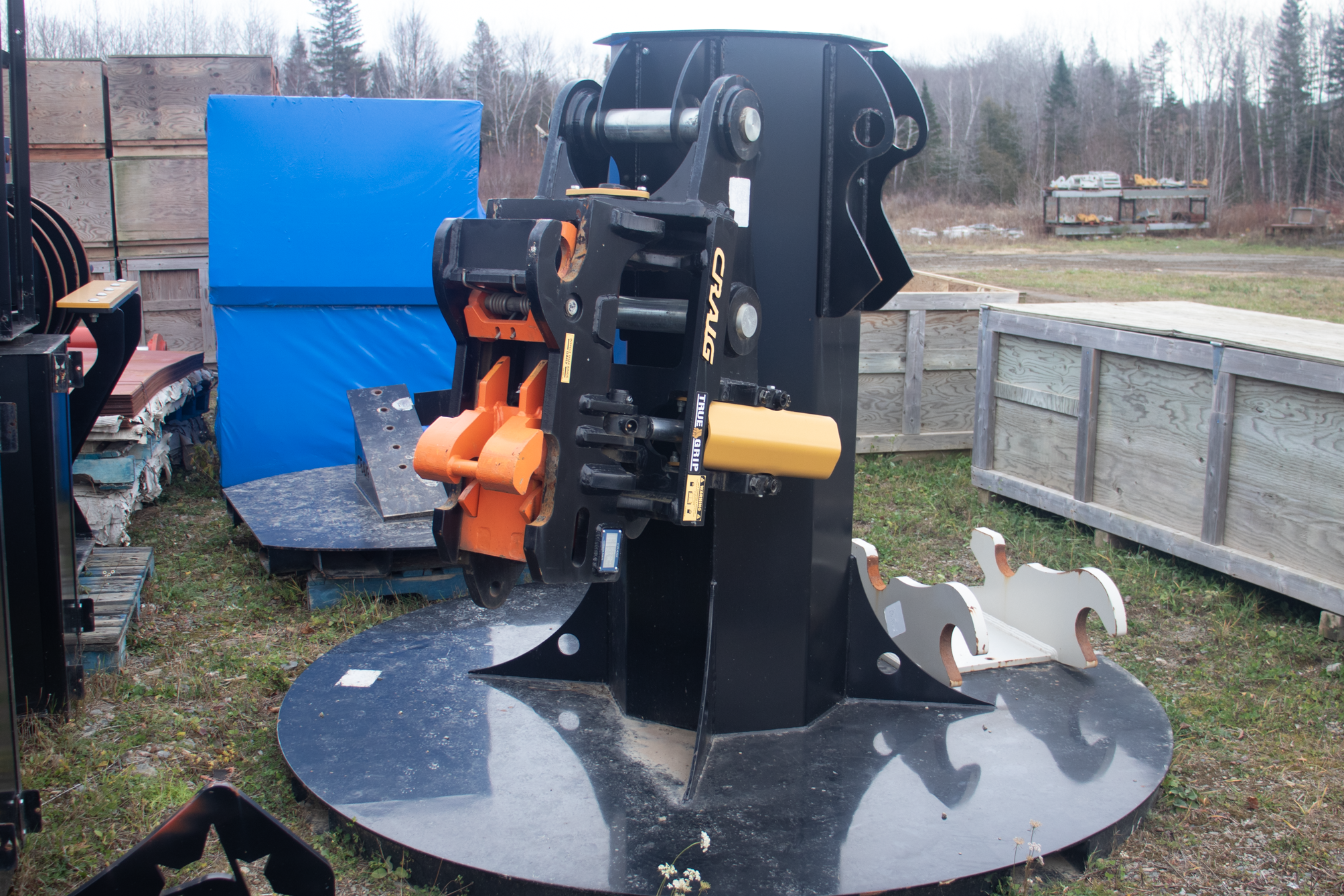

EXM-TGCT Tilt-TrueGrip

• Inventory Location: Hartland, NB, Canada
• Notes: Includes one set of Soft Pins. Made for Tradeshow Display, Never used.
• Machine: CATERPILLAR 320C

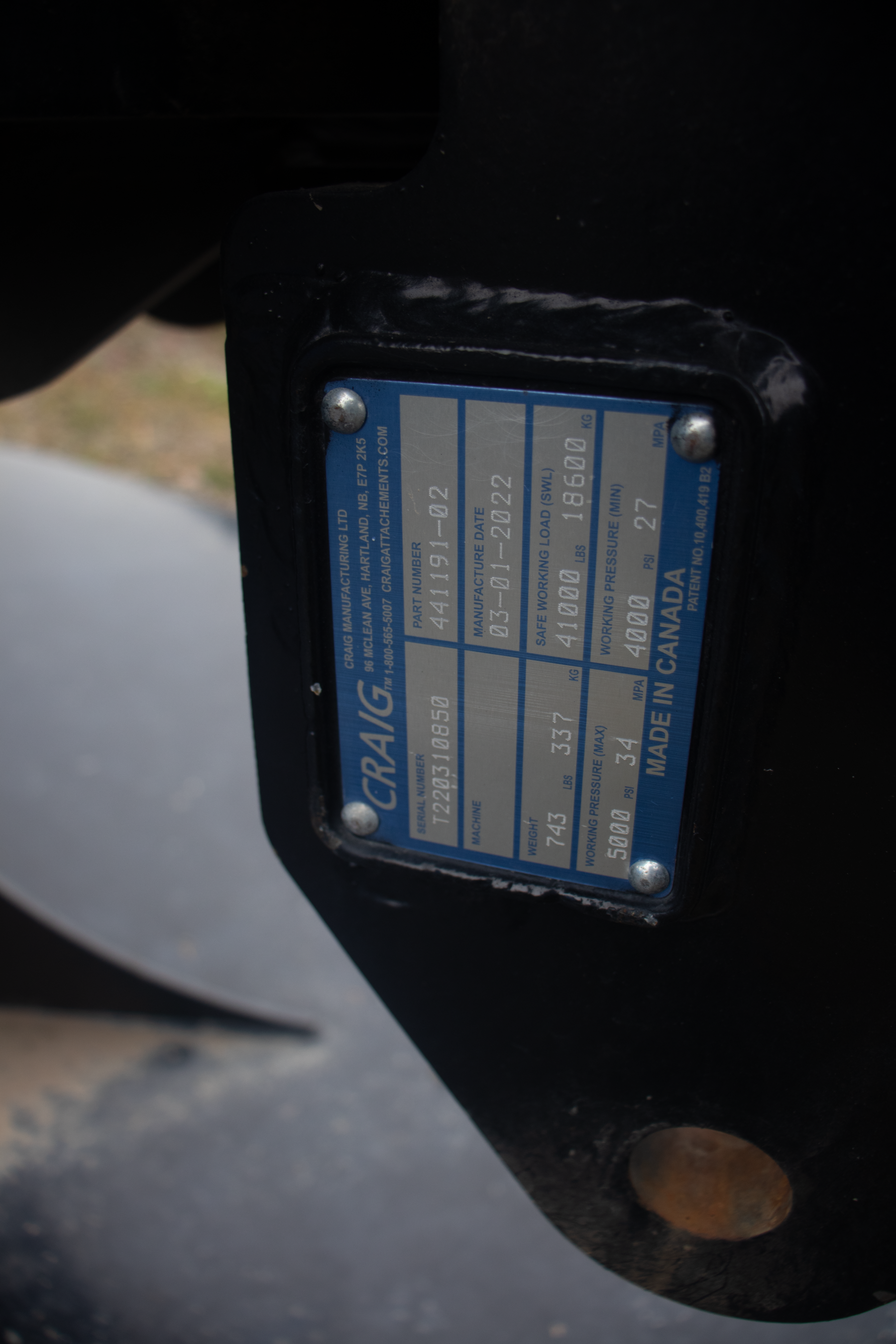

• Serial: T220310850

About Tilt TrueGrip:

With a simple and reliable design, the Truegrip Tilt coupler combines angled cylinders and the truegrip coupler to make your current bucket a tilt bucket. The cylinders allow the operator to tilt the attachment up to 45 degrees side to side. The coupler is multi pin compatible and the 2 locks attach quickly and are visible from the cab. The pin grabber works with most OEM coupler kits (confirm with Craig) or can be supplied with a Craig hydraulic kit.

• Minimal moving parts —simple, reliable, single-cylinder locking mechanism
• Low profile maximizes your machine’s breakout force.
• Dual tilt cylinders provide 45 degrees of rotation, allowing for better precision and less machine repositioning.
• TrueGrip engages and disengages on an adjustable timer, allowing operators to select a window of time for switching attachments.
• Attachments can be picked up in forward and reverse orientations
• Features a multi-pin design to pickup attachments from most OEMs in the same machine category (SEE COMPATIBILITY CHART)
• Minimal moving parts – the locking mechanism uses a single cylinder design that requires no greasing
• Includes one set of non-hardened attachment pins
• Uses two line coupler kit system
• Dual independent locks to ensure attachment is retained even if the coupler loses hydraulic pressure
• Tilt cylinders closely integrated to lower build height and minimize loss of breakout force
• ISO 13031:2016, EN 474, and AS 4772 COMPLIANT coupler design (see hydraulic kit options below)
• Complete with rated lifting point installed
• Made in North America

Craig Manufacturing: Clearance Item Policy

1. “As-Is” Sale
   All attachments / items sold under Craig Manufacturing’s Special Clearance Offers are sold as is, with all faults and without any express or implied warranty, except as expressly stated in this policy.
2. No Craig Warranty Coverage
   Regardless of whether the purchaser registers the serial number or completes registration paperwork, any product sold through a Special Clearance Offer is not eligible for Craig Technical Sales Support or Equipment Warranty coverage (including but not limited to the Equipment Limited Warranty, Snow Attachment Enhanced Warranty, or Parts Warranty).
3. Serial Numbers, Registration & Returns
   • Even if a Special Clearance item has a serial number, registration of that serial number does not confer any warranty rights related to Craig’s standard warranties.
   • Special Clearance items are not subject to return or warranty claims due to defects, installation issues, or performance shortfalls.
4. Scope & Limitations
   This policy applies only to items explicitly identified as “Special Clearance” in the product listing. Normal warranty policies (Equipment, Parts, Snow Attachment) continue to apply to non-clearance items under the usual terms: lapse of warranty, registration requirements, time / hour limits, etc. (see Craig’s Equipment Limited Warranty, Snow Attachment Enhanced Warranty, Parts Warranty)
5. Acknowledgement at Checkout & Listings
   The purchaser, by completing a Special Clearance purchase via web or otherwise, acknowledges acceptance of these terms. These terms will be prominently linked and/or included in the product listing and before checkout.

Please note: Only Craig Clearance Items are available for direct sale. For regular attachment inquiries, please submit a quote request or contact us directly.
