Craig Attachments

Side Entry Cab | Excavator Modification

Details
  • Carrier Excavator

Share to your socials:

Description Customizations Downloads Warranty

Craig side entry cabs are complete OEM cab replacement systems designed for demanding applications where visibility, protection, and operator comfort are critical. Built from proven 4-D designs and now supported by Craig Manufacturing, these cabs are made for machines working in forestry, demolition, construction, mining, and other severe-duty environments.

• Six LED exterior flood lights, including four forward-facing lights and two rear-facing lights
• 1-inch sound suppression foam
• Defroster / circulating fan
• Interior light
• Cup holder
• Lockable 'freezer door' style handle

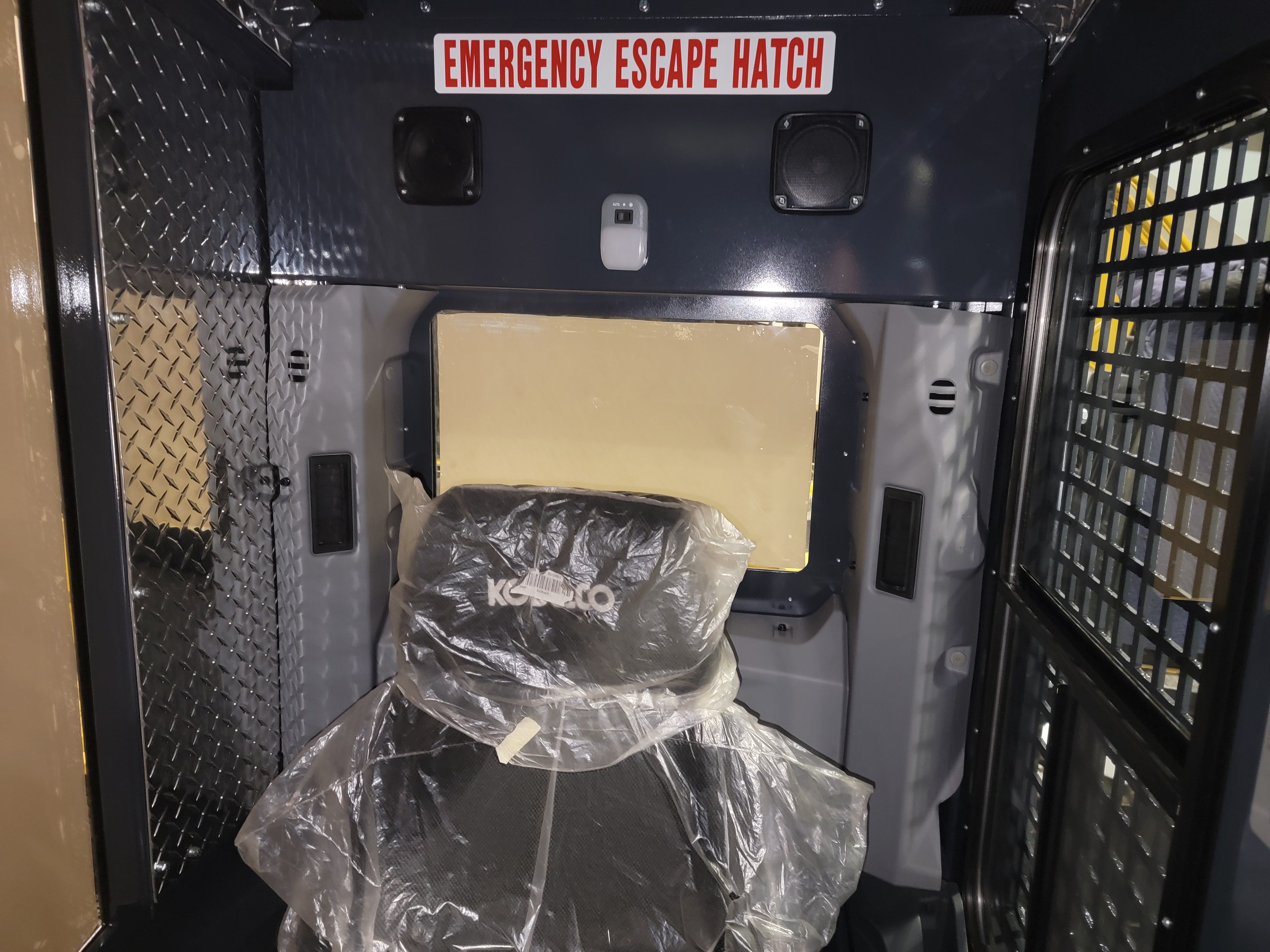

• Rear emergency escape window
• Side access door for computer, heater, and air conditioning service
• Side opening window with screen
• 1/2-inch Bronze MR10 Marguard side, rear, and front windows optional
• 4-inch square tube structure
• Rear boom side mounting plate for processor, computers, mobile radios, and other equipment

Options:
• 1-1/4” front polycarbonate
• Skylight
Cab Risers:
• 12” fixed, 18” fixed, 24” fixed,
36” tilting, 48” tilting, 60” tilting, 72”
tilting, custom sizes upon request


Safety & Compliance Standards
• OREGON OSHA OAR 437-007-0775 PROTECTIVE STRUCTURES FOR OPERATOR INCLUDING REQUIREMENTS IN PARAGRAPH (14) FOR TIP OVER PROTECTIVE STRUCTURES (TOPS)
• SAE 2267:2007 – MINIMUM PERFORMANCE CRITERIA FOR OPERATOR FRONT PROTECTIVE STRUCTURE (OPS)
• ISO 8082-2 – ROLL OVER PROTECTIVE STRUCTURES (ROPS)
• ISO 12117-2 – ROLL OVER PROTECTIVE STRUCTURES (ROPS)
• ISO 8083:2006 – FALLING OBJECT PROTECTIVE STRUCTURES (OPS)
• ISO 8084:2003 – OPERATOR PROTECTIVE STRUCTURES (OPS)
• ISO 12117:1997 – (E) FOR TIP OVER PROTECTIVE STRUCTURES (TOPS)
• BRITISH COLUMBIA WCB STANDARDS G602:1990, G603:1990, G604:1990, G608:1990
• CERTIFIED FOR EXCAVATORS UP TO MAXIMUM GROSS MACHINE WEIGHT OF
61,875KG (136,125LB
